THE “BLACK BOX” SOLUTION

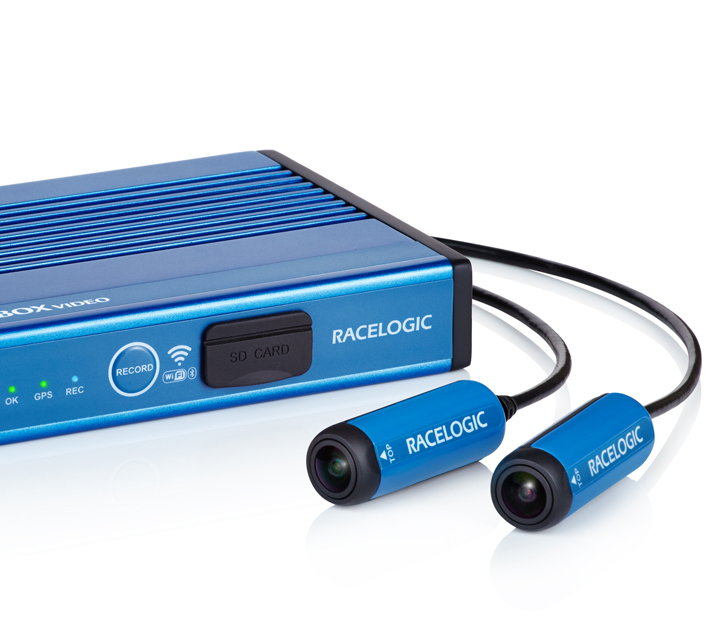

VBOX HD Mining System

RACELOGIC’s most sophisticated data logger, with optional HD video cameras.
  • Synchronises GPS data with video footage from up to 2 high definition cameras, logging to SD card or external USB drive
  • The only VBOX system with a circular buffer, so the most recent data will remain available as the system will delete the oldest files to make room for new files
  • Most useful for permanent fitment as a “black box” to capture GPS data for VBOX studies or investigate any events of interest – such as incidents, uncontrolled movements, tyre bursts or any significant change in operations
Contact us for pricing or variants to suit your application.

Video VBOX Pro Mining System

  • Synchronises GPS data with video footage from up to 4 standard definition cameras, logging to SD card or external USB drive
  • Includes modified Pelican case with bulkhead connectors (IP67) and stainless steel cameras with heavy duty extension cables
  • Most useful for temporary fitment during site visits to capture GPS data and video for equipment investigation and VBOX studies including TKPH modelling, driver analysis and haul road evaluation

Read more

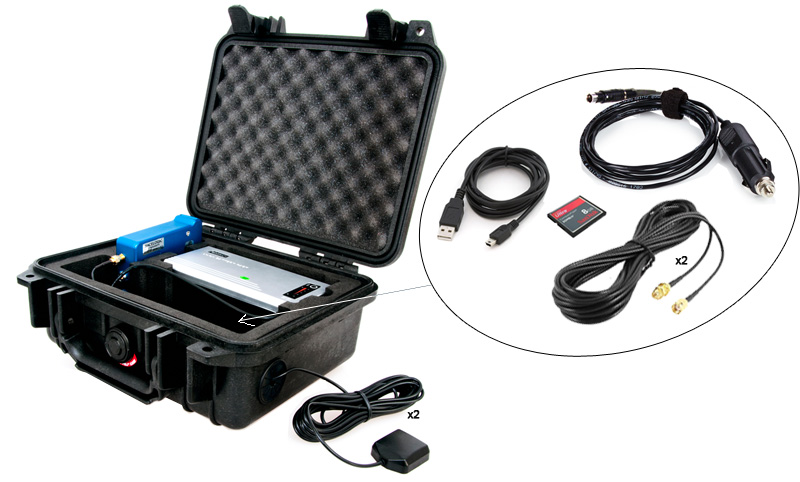

VBOX Micro Mining System

  • Logs data at up to 10 Hz directly to compact flash card
  • Long battery life captures several shifts on a single charge, independent of vehicle power supply
  • Most useful for quick temporary fitment during site visits to capture GPS data for TKPH modelling, driver analysis and haul road evaluation

Read More

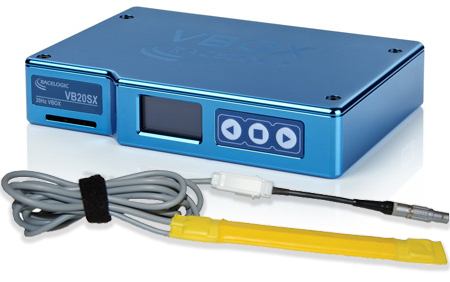

VBOX IISX Brake Test System

  • Logs data at up to 20 Hz directly to SD card
  • Includes a VBOX Brake Trigger to measure exactly when the brake pedal is applied
  • Most useful for brake testing with up to ±10 cm brake stop distance accuracy

Read more

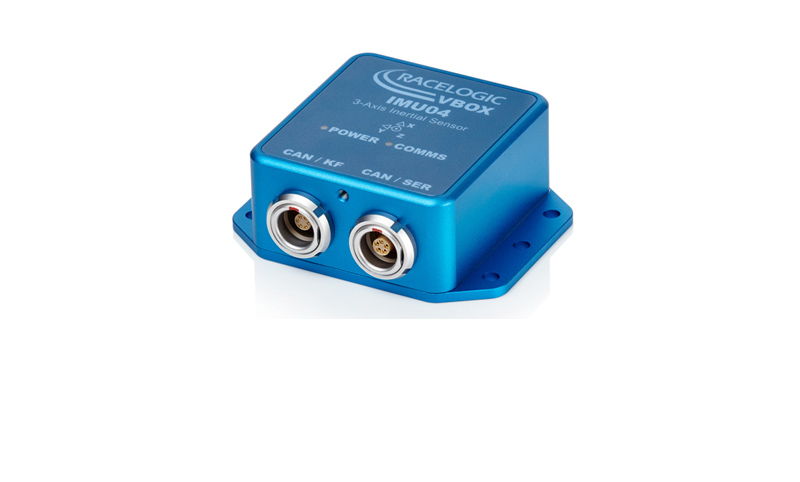

Racelogic IMU

Inertial Measurement Unit (IMU)

  • Combines 3x accelerometers and 3x gyroscopes in one module to connect with any VBOX system
  • Measures x, y, and z acceleration and yaw, pitch, and roll rates
  • Most useful for G-force analysis, haul road evaluation and corner design

Read more

Measured Parameters and CAN Bus Data

VBOX systems – logging high-resolution GPS data – can connect to the vehicle CAN Bus, which allows users to compare precise vehicle movements with on-board vehicle data.

VBOX GPS data

  • Speed
  • Distance
  • Lateral Acceleration
  • Longitudinal Acceleration
  • Heading
  • Radius of Turn
  • Altitude
  • Gradient

Vehicle Data

  • Throttle
  • Braking
  • Steering Angle
  • RPM
  • Gear
  • Wheel Speed
  • Payload
  • Fuel
Reduce heavy vehicle operational costs with high accuracy GPS and video data analysis
